Self-Host NetBox with Docker for IPAM, DCIM, and Infrastructure Source of Truth

If you manage VPS instances, dedicated servers, or MikroTik-based network instances, spreadsheets stop scaling fast. This guide shows you how to self-host NetBox Docker IPAM, from setting up containers to modeling your entire infrastructure as queryable data and automating it through the REST API.

This guide treats NetBox as the single source of truth for your IP address space, racks, devices, and MikroTik routers, and ends with a working automation and backup workflow you can run in production.

Spreadsheets and static documents break down quickly once you're tracking more than a few VPS instances, dedicated servers, or MikroTik routers across data centers. When you self-host NetBox Docker IPAM, you get a relational data model purpose-built for networking, such as sites, racks, devices, interfaces, VLANs, prefixes, IP addresses, and tenants. All live as connected, validated records instead of loose cells in a sheet.

Hosting NetBox yourself means your sensitive inventory data, including IP allocations, credentials references, and rack diagrams, stays on your own server instead of sitting in a third-party SaaS database.

If you're already running MikroTik routers with BGP across your VPS or dedicated-server setup, this matters even more. Every prefix, VLAN, and interface you configure on a router can be copied straight into NetBox, so your documentation always matches what's actually running.

Before you self-host NetBox Docker IPAM, prepare the following:

• A Linux VPS or dedicated server with at least 2 vCPUs and 4 GB RAM. 8 GB recommended for larger inventories. A flexible Linux VPS is a good starting point.
• Docker Engine, Docker Compose, and Git are installed.
• A domain name or subdomain is pointed to your server's public IP.
• Root or sudo access to open ports 80 and 443.

We assumed you have a running VPS with Ubuntu 24.04. Check that the required tools are installed:

The recommended way to self-host NetBox Docker IPAM is via the official NetBox Docker project, which provides a production-ready Compose stack that includes PostgreSQL, Redis, and the NetBox application containers.

Note: Cloning the release branch ensures you always track the latest stable NetBox Docker build rather than in-development snapshots.

By default, the base docker-compose.yml keeps NetBox isolated on the container network, so it can't be reached from outside. To expose it and set your core settings, you can use a separate override file that Docker Compose automatically merges when it starts up.

Copy the file:

Open the Docker Compose override file to expose NetBox on port 8000 and set up your admin account:

Uncomment and configure the following values:

This is the best way to self-host NetBox Docker IPAM without editing the tracked docker-compose.yml file directly.

This three-container setup is what you'll run whenever you self-host NetBox Docker IPAM on a single VPS, and it holds up fine even with tens of thousands of records before you'd ever need to spread things across multiple servers.

Every NetBox Docker stack has three core pieces:

• PostgreSQL to store the data.
• Redis to handle caching and background tasks.
• NetBox application split into a web container and a worker container.

Pull the images and bring up the stack:

Watch the containers come up healthy:

The first boot runs database migrations automatically, so give it a few minutes on a fresh volume before the health check reports "healthy".

Once ready, open the following URL in a browser:

You should see the NetBox login page.

Note: If you did not set up a superuser via environment variables in Step 2, you can create one manually:

Follow the prompts for a username, email, and password, then log in at the URL above with those credentials.

Once you self-host NetBox Docker IPAM in production, plain HTTP isn't safe because it sends your login credentials and infrastructure data in plain text that anyone on the network could read. The official docs recommend adding a lightweight Caddy container in front of NetBox to handle HTTPS automatically.

You can use the command below to create a Caddyfile with your desired text editor in the project root:

Paste this with your domain:

Then, open the docker-compose.override.yml:

Add the Caddy service:

Restart the stack:

Caddy will automatically request and renew a Let's Encrypt certificate for your domain, and you can reach NetBox over HTTPS.

A source-of-truth platform is only trustworthy if access is controlled. When you self-host NetBox Docker IPAM for a team, use NetBox's built-in role-based access control instead of sharing one admin login.

From the NetBox dashboard, you must go to Admin and then Authentication.

From the Users page, click +Add. Fill in details:

• Username.
• Password / Confirm password.
• First name / Last name / Email address: optional but recommended for real engineers.
• Groups: leave empty for now.
• Active: keep checked.
• Superuser status: leave unchecked. Only for full admins.
• Permissions: leave empty; permissions should come from the Group, not the individual user.
• Click Create.

From the Groups page, click +Add. Fill in details:

• Name: For example, IPAM Editors.
• Description: optional, for example, Can manage IP addresses and prefixes.
• Users: select the user you just created.
• Permissions: leave empty.
• Click Create.

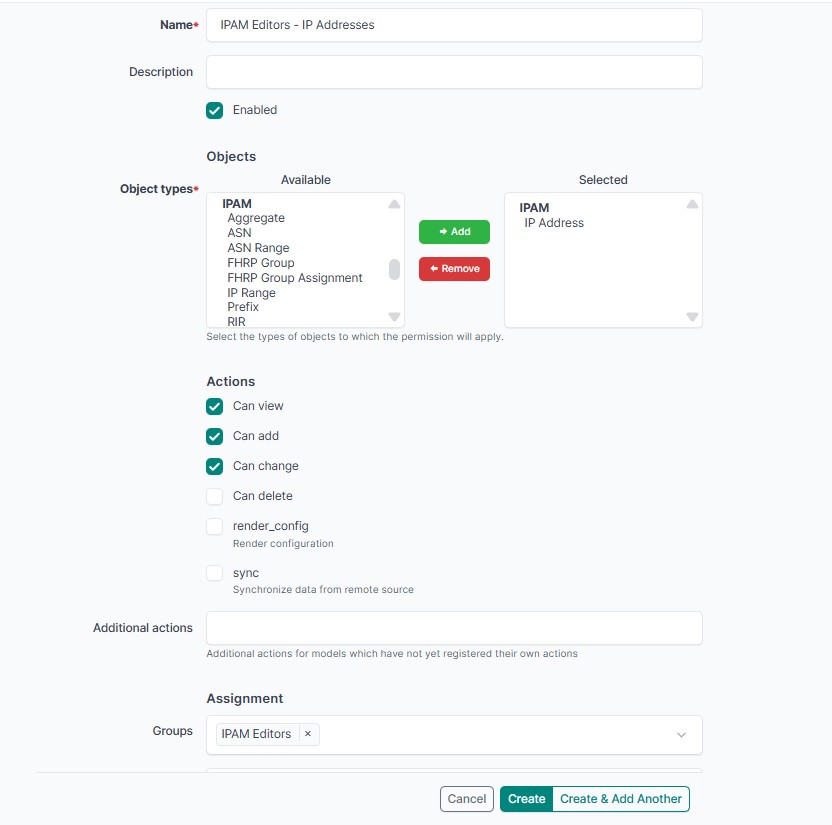

From the Permissions page, click +Add. Fill in details:

• Name: For example, IPAM Editors - IP Addresses.
• Enabled: Keep checked.
• Object types: In the Available list, click IP Address (under IPAM), then click Add to move it to Selected. Repeat for any other object type this group needs, for example, Prefix, VLAN.
• Actions: check the boxes this group is allowed to do; for editors, check Can view, Can add, Can change. Skip Can delete unless they should be able to remove records.
• Assignment → Groups: select IPAM Editors.
• Assignment → Users: leave empty.
• Constraints: leave blank unless you want to scope it further.
• Click Create.

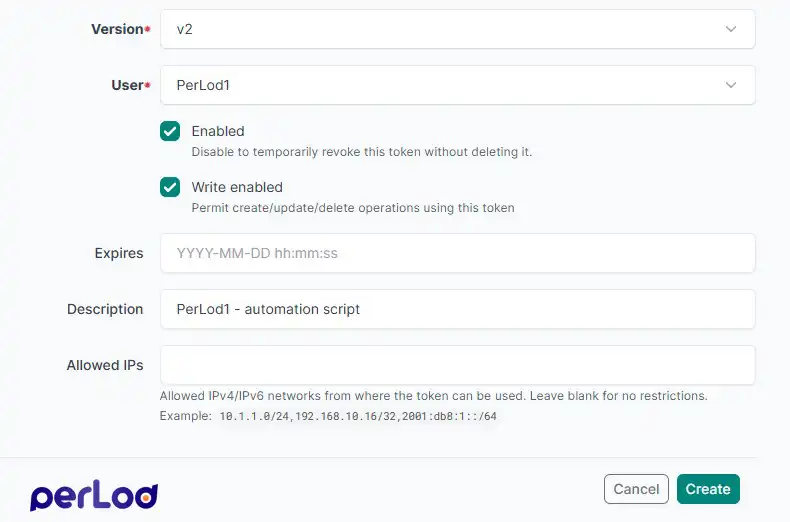

From the API Tokens page, click +Add. Fill in details:

• Version: keep v2.
• User: select the user this token belongs to.
• Enabled: keep checked.
• Write enabled: uncheck this if the user should only be able to read data via the API and leave it checked only if they need to create/update/delete through the API.
• Expires: optional; set a date if you want the token to auto-expire.
• Description: for example, PerLod1 - automation script.
• Allowed IPs: optional; restrict the token to a specific server/IP, so it can't be used if leaked.
• Click Create.

This way, interns or junior staff can look through the inventory without any risk of accidentally deleting real prefixes or devices.

Now that NetBox is running, it's time to actually build your source of truth. This is the point where the tool stops being just installed and starts becoming useful if you're managing VPS, dedicated servers, or MikroTik instances.

Sites are locations where your infrastructure runs. They can be real places, like a data center or colocation rack, or virtual locations, like a VPS provider in a specific region.

Click Organization in the left menu, click Sites, and click +Add.

For a VPS or dedicated-server setup, you can fill it like this:

Then click Create.

Racks belong to a Site and represent the real server cabinets in a data center. Use them when you have colocated or dedicated physical servers.

Click Rack and click +Add.

Fill the form like this:

Click Create when finished.

Devices represent physical or virtual hardware, such as dedicated servers, MikroTik routers, switches, or firewalls.

From Devices, click +Add, define a Device Type and a Device Role, then create the device instance and assign it to a site and rack.

Remember that you must define a device role, then add the device.

Interfaces are the ports on a device, such as ether1, eth0, or wlan0. Add them from the device’s Interfaces tab. You will later assign IP addresses and VLANs to these interfaces.

This is the IPAM core of the platform, and the part that keeps you from self-host NetBox Docker IPAM as just another database; it enforces real network logic.

• VLANs (IPAM → VLANs): Add a VLAN ID, name, and the Site where it is used. For example, create VLAN 100 with the name Management for your MikroTik site.
• Prefixes (IPAM → Prefixes): Add the network ranges you use, such as 10.10.0.0/24 or a public /29 from your provider. Link each prefix to its Site and VLAN when needed.
• IP Addresses (IPAM → IP Addresses): Add single IPs from a prefix and attach them to a device or VM interface. NetBox warns you if the same IP is assigned twice.
• VRFs and Aggregates: Use a VRF when different tenants use the same IP range. Use an Aggregate to track a larger block you own or receive from an upstream provider, such as a /24.

If you use MikroTik routers with BGP, add every routed prefix and loopback IP to NetBox as soon as you configure it on the router. Make this a standard part of your deployment process, not something you do later.

If you still need to set up BGP, follow our BGP configuration on MikroTik VPS guide, then add the prefixes you create to NetBox.

Tenant filters are often overlooked when teams self-host NetBox Docker IPAM, but they are very useful for MSPs that manage and bill infrastructure for multiple clients from one NetBox instance.

If you manage infrastructure for multiple clients, departments, or projects, use Organization > Tenancy > Tenants and Tenant Groups. Assign a tenant to sites, prefixes, devices, and IP addresses so you can filter the entire inventory by client.

It is essential when you self-host NetBox Docker IPAM as a shared platform for an agency, MSP, or multi-project team rather than a single owner.

Every object you create through the UI is also available through NetBox's REST API, which is what turns a static inventory into an automation source.

Copy the token from your user profile API tokens. NetBox v4.5+ issues v2 tokens by default, which use a Bearer prefix rather than the deprecated v1 Token prefix.

Query all IP addresses as JSON:

Create a new prefix via the API:

Export your full device inventory for a script or a spreadsheet handoff:

NetBox returns 50 results per API request by default. Use ?limit=0 to export everything, or ?fields= to return only the data you need. This keeps automation fast when you self-host NetBox Docker IPAM with a large inventory.

For Python automation, use the pynetbox library with Ansible, Terraform, or your own scripts.

Your NetBox database contains important network information, so back it up every day. If you lose it, you may lose your only accurate record of IPs, devices, and infrastructure. When you self-host NetBox Docker IPAM, run a nightly backup with cron:

Also back up docker-compose.override.yml, Caddyfile, and any custom configuration.py files. These are not included in the database backup and are needed to rebuild NetBox.

Keep at least 7 daily backups and 4 weekly backups somewhere outside the NetBox server, such as another server with rsync or object storage.

When you self-host NetBox Docker IPAM in production, keep it updated regularly. Skipping too many versions can make future upgrades harder and riskier.

Before every upgrade:

• Read the release notes for the version you plan to install.
• Create a fresh database backup.
• Pull the latest project files and Docker images:

• When NetBox starts after an upgrade, it updates its database schema automatically. Watch the logs until the container becomes healthy:

• If you upgrade to a new major PostgreSQL version, back up the database first, then restore it into a new volume. Do not upgrade the old database volume in place.

For safer changes, use a pull request or ticket for bulk API updates. NetBox also records who changed each object and when. Add a changelog_message to API requests so automated changes are easy to track.

At this point, you have learned to self-host NetBox Docker IPAM with PostgreSQL, Redis, HTTPS through Caddy, user permissions, and an inventory. You can also use the REST API for automation.

Keep regular backups and follow a safe upgrade process. Most importantly, update NetBox whenever you add, remove, or change an IP address, device, VLAN, or other real infrastructure.

We hope you enjoy this guide.

For more detailed information on configuration parameters, data models, and the REST/GraphQL APIs, check the NetBox official documentation.
