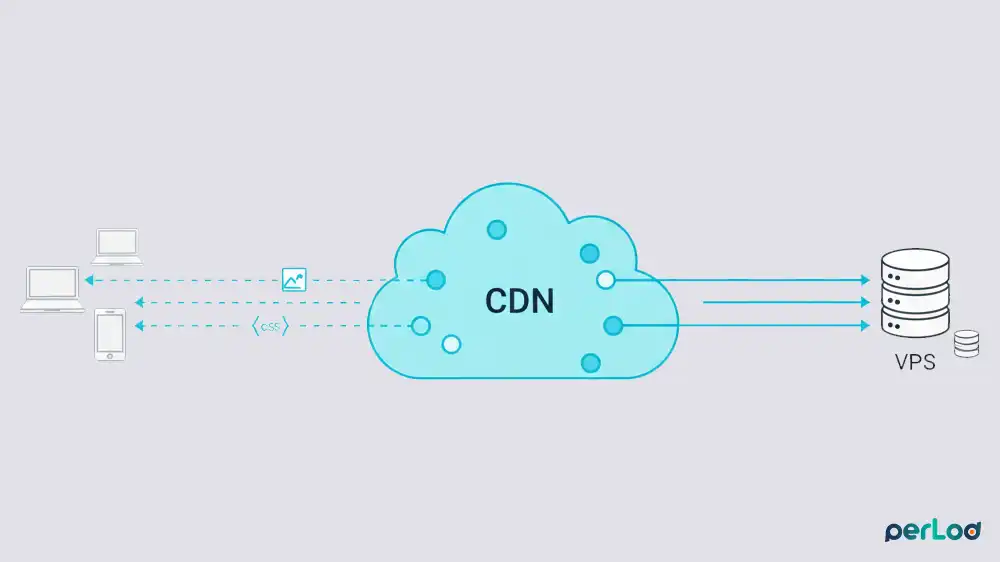

Building a fast website on a VPS is not only about adding more CPU or RAM; it is mainly about delivering your site’s files from the nearest location to the visitor, while your VPS only handles the parts that must run on the server. This guide will show you how to configure a CDN and Edge Rules for VPS websites.
In this tutorial from PerLod Hosting, we want to use Ubuntu 24.04 LTS, Nginx, and Cloudflare’s edge network to enhance your site's load speed, reduce VPS load, and improve real user performance.
Prepare VPS Server for CDN and Edge Rules Setup
Before installing the software packages and configuring your server, you must prepare your VPS.
Tip: If you need a reliable VPS server, our VPS plans are designed for fast Nginx performance and work perfectly with Cloudflare CDN and Cache Rules.
You can connect to your VPS IP as the root user and run the system update and upgrade:
ssh root@your_server_ipapt update && apt upgrade -y
Then create a sudo user with the commands below:
adduser webadminusermod -aG sudo webadmin
To secure SSH access, it is recommended to disable root login and password authentication. On your local computer, run the command below to SSH in without a password:
ssh-copy-id webadmin@your_server_ip
From your VPS, open the SSH config file with the command below:
nano /etc/ssh/sshd_config
Look for the following lines and adjust the values as shown below:
PermitRootLogin noPasswordAuthentication no
Restart SSH to apply the changes:
Also, allow the required ports through your UFW firewall and enable it:
ufw allow OpenSSHufw allow 'Nginx Full'ufw enable
At this point, you can install the LEMP stack so your server can reliably serve web pages, run dynamic PHP applications, and store website data in a database.
With your sudo user, run the commands below to install and enable Nginx:
sudo apt install nginx -ysudo systemctl enable nginxsudo systemctl start nginx
Install MariaDB as your database engine:
sudo apt install mariadb-server -y
Run the security script and set a password for it:
sudo mysql_secure_installation
Ubuntu 24.04 ships with default PHP 8.3, you can use the command below to install PHP and its required packages:
sudo apt install php8.3-fpm php8.3-mysql php8.3-common php8.3-curl php8.3-gd php8.3-mbstring php8.3-xml php8.3-zip php8.3-bcmath -y
Do not forget that you need a domain’s A record pointed to the VPS IP and set to Proxied (orange cloud).
Nginx and Cloudflare Optimization
Now you can configure Nginx to work correctly behind Cloudflare. Because Cloudflare acts as a reverse proxy, your VPS will normally see Cloudflare IPs in logs unless you restore the real visitor IP using Cloudflare’s CF-Connecting-IP header and Nginx real IP settings.
Also, you can set strong cache headers for static files so browsers and Cloudflare can safely cache them longer, reducing repeated requests to your VPS and improving load times worldwide.
Nginx must know that Cloudflare is a trusted proxy to log real visitor IPs. Open the following file:
sudo nano /etc/nginx/conf.d/cloudflare-real-ip.conf
Paste the following block into the file:
12set_real_ip_from 173.245.48.0/20;3set_real_ip_from 103.21.244.0/22;4set_real_ip_from 103.22.200.0/22;5set_real_ip_from 103.31.4.0/22;6set_real_ip_from 141.101.64.0/18;7set_real_ip_from 108.162.192.0/18;8set_real_ip_from 190.93.240.0/20;9set_real_ip_from 188.114.96.0/20;10set_real_ip_from 197.234.240.0/22;11set_real_ip_from 198.41.128.0/17;12set_real_ip_from 162.158.0.0/15;13set_real_ip_from 104.16.0.0/13;14set_real_ip_from 104.24.0.0/14;15set_real_ip_from 172.64.0.0/13;16set_real_ip_from 131.0.72.0/22;17 1819set_real_ip_from 2400:cb00::/32;20set_real_ip_from 2606:4700::/32;21set_real_ip_from 2803:f800::/32;22set_real_ip_from 2405:b500::/32;23set_real_ip_from 2405:8100::/32;24set_real_ip_from 2a06:98c0::/29;25set_real_ip_from 2c0f:f248::/32;26 27real_ip_header CF-Connecting-IP;
Once you are done, save and close the file.
Note: Update this list occasionally from Cloudflare’s official IP list.
Now you must create a directory and a unified configuration file that handles PHP and caching headers simultaneously.
To create the directory and set up the correct ownership and permissions, run the following commands:
sudo mkdir -p /var/www/yourdomain.comsudo chown -R www-data:www-data /var/www/yourdomain.comsudo chmod -R 755 /var/www/yourdomain.com
Create the configuration file with your domain name:
sudo nano /etc/nginx/sites-available/yourdomain.com
Add the following optimized configuration to the file:
1server {2 listen 80;3 server_name yourdomain.com www.yourdomain.com;4 root /var/www/yourdomain.com;5 index index.php index.html;6 7 8 access_log /var/log/nginx/yourdomain.access.log;9 error_log /var/log/nginx/yourdomain.error.log;10 11 location / {12 try_files $uri $uri/ /index.php?$args;13 }14 15 16 location ~ \.php$ {17 include snippets/fastcgi-php.conf;18 fastcgi_pass unix:/run/php/php8.3-fpm.sock;19 fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;20 include fastcgi_params;21 }22 23 24 25 location ~* \.(jpg|jpeg|png|gif|ico|css|js|svg|webp|woff|woff2|ttf)$ {26 expires 30d;27 add_header Cache-Control "public, no-transform";28 access_log off;29 }30 31 32 location ~ /\.ht {33 deny all;34 }35}
If the Nginx default config file stays enabled, it can hijack traffic when the configs mismatch. You can remove it with:
sudo rm -f /etc/nginx/sites-enabled/default
When you are finished, enable the configuration, check for syntax errors, and reload Nginx to apply the changes:
sudo ln -s /etc/nginx/sites-available/yourdomain.com /etc/nginx/sites-enabled/sudo nginx -tsudo systemctl reload nginx
Then, you can connect to your database engine and create the database for your app, for example, WordPress:
From your MariaDB shell, you can run:
1CREATE DATABASE app_db;2CREATE USER 'app_user'@'localhost' IDENTIFIED BY 'StrongPassword123!';3GRANT ALL PRIVILEGES ON app_db.* TO 'app_user'@'localhost';4FLUSH PRIVILEGES;5EXIT;
Secure HTTPS Between Cloudflare and VPS
In this step, you can configure SSL the right way so traffic is encrypted not only between the visitor and Cloudflare, but also between Cloudflare and your VPS. This prevents SSL errors, redirect loops, and insecure setups, while ensuring Cloudflare can safely proxy and accelerate your site over HTTPS.
To do this, you can use a valid SSL certificate on the VPS via Let's Encrypt and set Cloudflare’s SSL mode to use that certificate so both sides of the connection stay protected.
Install Certbot with the command below:
sudo apt install certbot python3-certbot-nginx -y
Get your SSL certificates for your domain name with the command below:
sudo certbot --nginx -d yourdomain.com -d www.yourdomain.com
Note: Ensure your DNS points to the server IP before running the above command.
Now that the VPS has SSL, you can configure Cloudflare to use it.
From the Cloudflare dashboard settings, navigate to SSL/TLS, Overview, and set it to Full (Strict).
Note: Never use Flexible when the VPS has an SSL certificate. It causes redirect loops.
Also, from the DNS section, ensure the Proxy status (orange cloud) is enabled.
Advanced Cloudflare Edge Rules: Force Cache at the Edge
At this point, you can use Cloudflare Cache Rules to control exactly what gets cached on Cloudflare’s edge servers and what must always come from your VPS.
Cloudflare Cache Rules let you mark requests as Eligible for cache or Bypass cache, then set an Edge TTL and a Browser TTL.
The goal is to cache static files aggressively, so Cloudflare serves them fast from the edge instead of requesting them from your VPS. At the same time, you should bypass caching for admin pages and other sensitive or dynamic parts of the site.
Cloudflare also lets you force caching by setting the Edge TTL to “Ignore cache-control header and use this TTL,” which means Cloudflare will cache those matching files even if your VPS sends different cache headers.
From the Cloudflare dashboard, navigate to:
Caching > Cache Rules > Create Rule
Rule 1: Bypass Admin, which protects your backend from being cached.
- Name: Do Not Cache Admin
- Expression: URI Path contains /wp-admin OR URI Path contains /wp-login.php
- Action: Bypass cache.
Rule 2: Aggressive Static Cache, which forces images or CSS to stay on Cloudflare's servers for 1 month.
- Name: Force Static Cache
- Expression: File Extension is in jpg, jpeg, png, webp, css, js, svg, woff2
- Action: Eligible for cache.
- Edge TTL: Ignore cache-control header = 1 Month.
- Browser TTL: Override origin = 1 Year.
Verify CDN and Edge Rules for VPS Websites
Now that the VPS, Nginx, SSL, and Cloudflare rules are in place, the next step is to verify each layer is working as expected.
You can test PHP by creating a test file:
echo "<?php phpinfo(); ?>" | sudo tee /var/www/yourdomain.com/info.php
Then, visit the following URL. If it loads, PHP is working.
https://yourdomain.com/info.php
To test the CDN cache, you can run the command below from your local machine:
curl -I https://yourdomain.com/wp-content/uploads/some-image.jpg
Look for the following headers:
- cf-cache-status: HIT
- cache-control: public, max-age=31536000
To test the real IP, you can check the logs on the VPS:
tail -f /var/log/nginx/yourdomain.access.log
Visit the site, and you should see your actual ISP IP address, not a Cloudflare IP.
Conclusion
Now you have successfully built a CDN and Edge Rules for VPS Websites infrastructure. Your VPS is no longer handling repetitive requests for static files. Cloudflare's edge network does that from 300+ cities worldwide. This means faster load times and reduced server CPU usage.
We hope you enjoy this CDN and Edge Rules for VPS Websites guide. Subscribe to our X and Facebook channels to get the latest articles.
